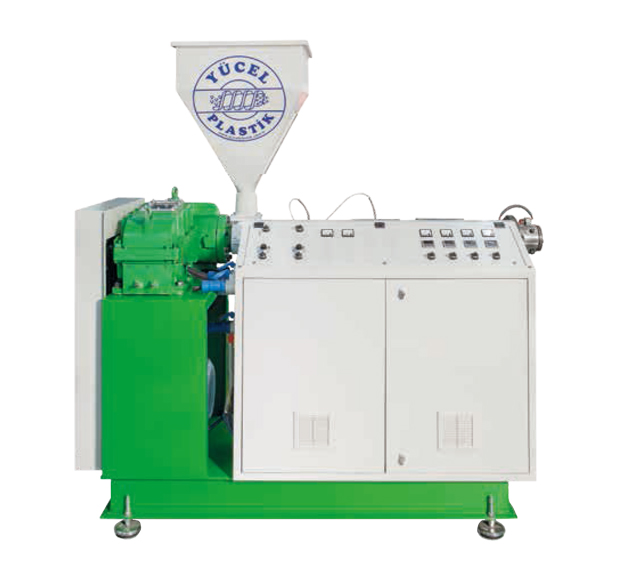

Single Screw Extruders
With YÜCEL technology and quality in profile productions such as pipe, baseboard, paneling, curtain rail, cable channel, bathroom tile lath.
Code:
Category:
Single Screw Extruders
| MODEL | YCL-EX-30 | YCL-EX-45 | YCL-EX-60 | YCL-EX-70 | YCL-EX-90 | |
|---|---|---|---|---|---|---|
| Screw diameter | mm | 30 | 45 | 60 | 70 | 90 |
| Screw length | L/D | 22D-25-30D | ||||
| Screw speed | rpm | 0-70s | 0-70 | 0-70 | 0-70 | 0-60 |
| Screw torque | Nm | 400 | 1300 | 2800 | 3200 | 5700 |
| Axial direction | Kn | 345 | 450 | 575 | 575 | 710 |
| Motor power | kW | 5,5 | 11 | 15 | 22 | 37-55 |
| Number of barrel heaters | 1-2 | 2-3 | 3-4 | 4 | 5-6 | |
| Barrel heater power | kW | 3,5 | 8,5 | 10 | 13 | 16 |
| Number of mold heaters | 1-2 | 2 | 2-3 | 4 | 3-4 | |
| Feeding hopper | kg | 30 | 50 | 50 | 60 | 100 |
| Working axis (adjustable) | mm | 1050 | ||||
| Dimensions H (L/W/H) |
mm | 1600 900 1700 |
1800 900 1700 |
1850 900 1900 |
2650 900 1950 |
|
| Weight | kg | 350 | 650 | 850 | 1000 | 1800 |
